Marketplace Integrations

The Marketplace lets you connect external services to Archyl and surface their data as live widgets on your architecture dashboards. Monitor deployments, track code quality, watch metrics, and review security alerts — all directly alongside your C4 model.

Overview

Marketplace integrations work in three layers:

1. Products — The external services available for integration (Datadog, GitHub, SonarQube, etc.)
2. Connections — Organization-scoped credentials that authenticate with a product's API
3. Widgets — Visual cards placed on project dashboards that display live data from a connection

A single connection can power multiple widgets across different projects. Widgets refresh automatically every 30 seconds.

Supported Products

Datadog

Monitor infrastructure and application health.

GitHub

Track repositories, workflows, and security findings.

GitLab

Monitor pipelines, merge requests, and security scanners.

Prometheus

Query metrics and monitor targets.

SonarQube

Track code quality and security analysis.

ArgoCD

Monitor Kubernetes application deployments.

PagerDuty

Monitor incidents, on-call schedules, and service health.

Setting Up a Connection

Connections are managed at the organization level. Only organization admins can create or modify connections.

1. Navigate to the Marketplace

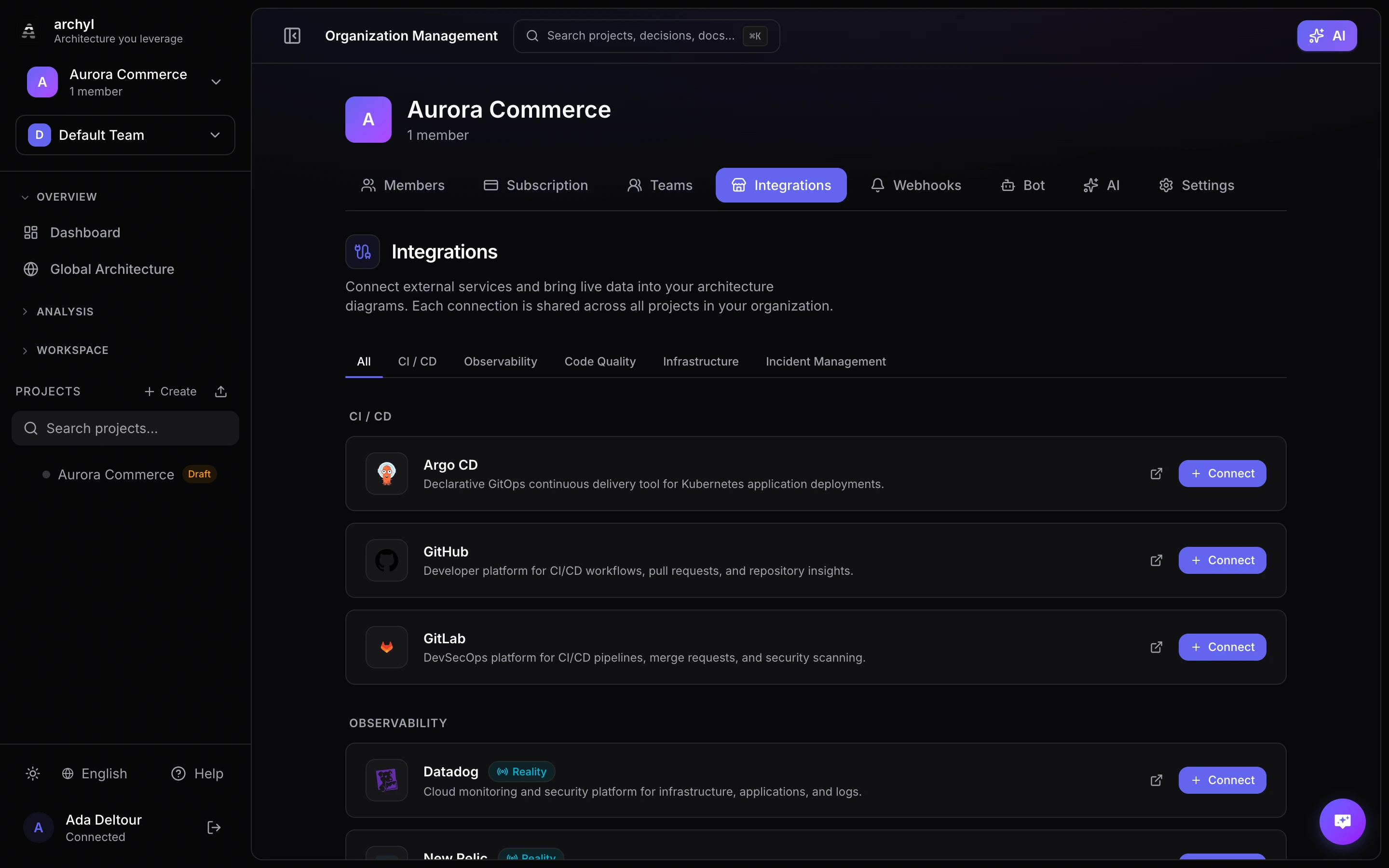

Go to Organization Settings and select the Marketplace tab. All available products are listed by category.

2. Add a Connection

1. Find the product you want to connect
2. Click Connect
3. Enter a name for the connection (e.g., "Production Datadog" or "GitHub - Backend Repos")
4. Fill in the required credentials

Each product requires different configuration fields:

3. Test the Connection

Click Test Connection before saving. Archyl will verify the credentials and display a success or error message. If the test fails, check:

• The API key or token has the required permissions
• The server URL is reachable from the internet
• The credentials haven't expired

4. Save

Once the test passes, click Save. The connection is now available across all projects in your organization.

Managing Connections

• Edit: Update the name or credentials of an existing connection
• Delete: Remove a connection. Widgets using it will stop working and show an error state
• Status indicators: Green (active), red (error), gray (disconnected)

You can create multiple connections to the same product — for example, separate connections for staging and production Datadog accounts.

Adding Widgets

Widgets display live data from your connections on project dashboards.

1. Open the Integrations Tab

In your project, navigate to the Integrations view. Click Customize to enter edit mode.

2. Add a Widget

1. Click the Add Widget button
2. Step 1 — Select Connection: Choose which connection to use. Connections are grouped by product.
3. Step 2 — Choose Widget Type: Select the type of widget (status, counter, list, graph, or embed). Available types depend on the product.
4. Step 3 — Configure: Set the widget title and product-specific options

3. Configure Widget Options

Each widget type has specific configuration fields:

GitHub widgets require:

• Owner: GitHub organization or username
• Repository: Repository name
• Severity (security widgets): Filter by alert severity

Datadog widgets require:

• Monitor Tags (monitor/alerts): Comma-separated tag filter
• Query (metric): Datadog metric query string
• Timeframe (metric): 1h, 4h, 1d, or 1w
• Embed URL (dashboard): Shared dashboard URL

Prometheus widgets require:

• Query: PromQL expression
• Timeframe (graph): 15m, 1h, 4h, 1d, or 1w
• Y-axis Label and Unit (graph): Optional display formatting
• Job Filter (target status): Scrape job name

SonarQube widgets require:

• Project Key: SonarQube project identifier
• Metric (measures): coverage, bugs, vulnerabilities, code_smells, etc.
• Severity and Issue Type (issues): Optional filters

ArgoCD widgets require:

• Application Name (status/resources): Single app name
• Application Filter (list/count): Regex pattern matching app names
• Project (list): ArgoCD project filter
• Health Filter (count): Healthy, Degraded, Progressing, etc.

PagerDuty widgets require:

• Service ID (incidents/status): Optional filter by PagerDuty service
• Escalation Policy ID (on-call): Optional filter by escalation policy

Widget Types

Counter

Displays a single numeric value prominently. Use for metrics like CPU usage, request count, coverage percentage, or star count.

• Large formatted number with optional unit
• Optional label below the value
• Adapts text size to widget dimensions

Status

Shows a health indicator with color coding. Use for CI status, quality gates, monitor health, or deployment sync state.

• Color-coded badge: green (ok), amber (warning), red (critical)
• Optional breakdown counts (ok, warning, alert)
• Contextual message when available

List

Displays a scrollable list of items. Use for pull requests, alerts, issues, or application inventories.

• Each item shows title, optional subtitle, and status badge
• Clickable items link to the external service
• Color-coded status badges (success, warning, error, critical, pending)

Graph

Renders a time series line chart. Use for Prometheus range queries or any metric over time.

• Multi-series support with colored lines
• Adaptive time axis formatting
• Hover tooltip with formatted values
• Optional Y-axis label and unit

Embed

Displays an external page in an iframe. Use for Datadog dashboards, Grafana panels, or any embeddable URL.

• Full iframe rendering
• Sandboxed for security
• Responsive to widget size

Organizing Widgets

Sections

Widgets are organized into named sections. The default section is General.

• Create a section: In edit mode, use the section input field to add a new section
• Rename: Click the pencil icon on a section header
• Delete: Click the trash icon. Widgets in the deleted section move to General
• Collapse/Expand: Click the chevron to toggle section visibility

Reordering

In edit mode:

• Drag widgets to reposition them within a section or move them to a different section
• Drag section headers to reorder entire sections
• Resize widgets from the bottom-right handle

Widget positions and section assignments are saved automatically.

Widget Grid

The grid uses a 12-column layout. Widgets can be resized from 1 column wide to the full 12 columns, and from 3 rows tall to any height. The grid compacts vertically — widgets stack upward to fill gaps.

Scoping

Widgets can be scoped at three levels:

Organization-wide widgets are configured from the top-level Integrations page. Project and element widgets are configured within the project's Integrations tab.

Troubleshooting

Widget shows "Invalid credentials"

The connection credentials have expired or been revoked. Go to Organization Settings > Marketplace, find the connection, and update the credentials. Click Test Connection to verify.

Widget shows "Unable to load data"

The external service may be unreachable or the query may be invalid. Check:

• The service is up and accessible
• The query or filter configuration is correct
• The connection's API key has permission to access the requested resource

No connections available when adding a widget

Connections are created at the organization level. If you're not an admin, ask your organization administrator to set up a connection in Organization Settings > Marketplace.

Best Practices

Name Connections Clearly

Use descriptive names that indicate the environment and purpose:

• "Datadog — Production"
• "GitHub — Backend Team"
• "SonarQube — Main Project"

Organize with Sections

Group related widgets into sections:

• "Monitoring" for Datadog and Prometheus widgets
• "Security" for SonarQube and GitHub security scanning widgets
• "CI/CD" for workflow status and deployment widgets
• "Incident Response" for PagerDuty incident and on-call widgets

Start with Status Widgets

Status widgets give you a quick health overview. Add counter and list widgets for more detail once you've identified the key metrics.

Use Element-Scoped Widgets

Attach widgets directly to C4 elements so your architecture diagrams show live operational context. For example, attach a GitHub workflow status widget to the container that represents your API service.

Next Steps

• Release Management — Track deployments across your architecture
• Architecture Insights — Detect architectural issues
• Flows — Visualize how data moves through your system
