User Flows

User Flows in Archyl let you document sequences of interactions across your architecture. Visualize how users, data, or requests move through your system.

What Are Flows?

A Flow represents a sequence of steps through your architecture:

  • User journeys: Login, checkout, signup
  • Data flows: Order processing, data sync
  • System interactions: API calls, event chains
  • Error handling: Failure scenarios, retries

Each step in a flow references relationships in your architecture, creating a connected view of how things work.

Creating a Flow

From the Flows Tab

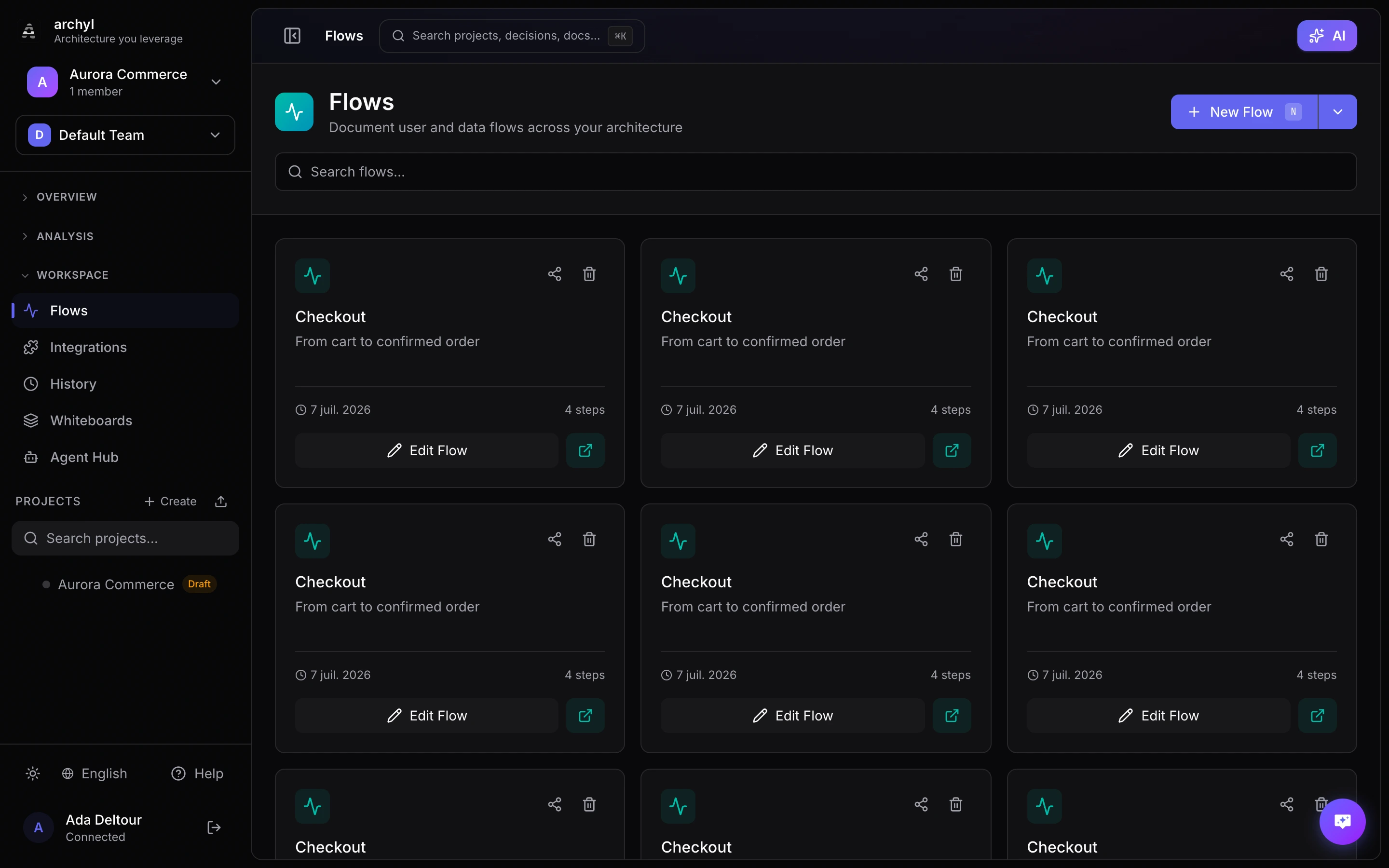

  1. Go to the Flows tab in your project
  2. Click Create Flow
  3. Enter a name and description
  4. Add steps by selecting relationships
  5. Click Save

Flow Structure

Each flow contains:

Field Description
Name Short, descriptive name (e.g., "User Login Flow")
Description What this flow represents
Steps Ordered list of relationship references

Adding Steps

For each step:

  1. Select a relationship from your architecture
  2. The step shows source, target, and relationship label
  3. Drag to reorder steps
  4. Add notes for additional context

Generating Flows with AI

Archyl can write the flow for you. Describe the journey you want to document — the AI reads your organisation's projects, picks the ones involved, and produces the steps.

How It Works

The generator runs in two passes:

  1. Project shortlist — the AI scans every project in your organisation and selects up to 5 that match your prompt.
  2. Flow steps — the AI loads the merged C4 model of those projects (including cross-project relationships) and writes the ordered list of steps.

Every step is validated against the C4 model before persistence. Steps that reference non-existent elements or mismatched relationships are dropped automatically.

Generating a Flow

  1. Open Flows from the sidebar
  2. Click Generate with AI
  3. Describe the flow you want — the prompt is required
  4. Click Generate →

The result opens automatically. Flows that span more than one project are marked with a Cross-project badge in the list.

Requirements

  • At least one project in your organisation needs a C4 model (run AI Discovery first)
  • The prompt is required — it drives the project shortlist
  • The feature is available on the Business plan

Tips for Good Prompts

The more specific your prompt, the tighter the result.

Less specific More specific
"login" "the authentication journey"
"emails" "how the order confirmation email gets sent after checkout"
"data" "the data pipeline from ingestion to dashboard"

Specificity reduces the number of projects selected and produces steps you can ship without editing.

Viewing Flows

Step-by-Step Navigation

When viewing a flow:

  • Steps are shown in order
  • Current step is highlighted on the diagram
  • Navigate with Next/Previous buttons
  • See the full context at each step

Animated Playback

Click Play to animate through the flow:

  • Automatic step progression
  • Highlighted path on diagram
  • Adjustable playback speed

Sharing Flows

Public Flow Links

User Flows have built-in public sharing:

  1. Open a Flow
  2. Click the Share icon
  3. Copy the public URL
  4. Share with anyone

The public view includes:

  • Step-by-step navigation
  • Architecture visualization
  • Flow description
  • No authentication required

Embedding Flows

Embed flows in external tools:

  • Confluence
  • Notion
  • Documentation sites
  • Wikis

Best Practices

Name Flows Clearly

Use action-oriented names:

  • "User Registration"
  • "Order Checkout Process"
  • "Payment Refund Flow"
  • "Data Sync Pipeline"

Keep Flows Focused

  • One flow per user journey
  • 5-15 steps is ideal
  • Break complex flows into sub-flows
  • Reference other flows when needed

Add Context

Use descriptions to explain:

  • Why this flow exists
  • Who uses it
  • When it's triggered
  • What the expected outcome is

Link to Documentation

Reference related docs:

  • API specifications
  • Requirements documents
  • ADRs explaining design choices

Example Flows

E-commerce Checkout

  1. User → Cart Service: "View cart"
  2. Cart Service → Inventory: "Check availability"
  3. User → Checkout Service: "Begin checkout"
  4. Checkout Service → Payment: "Process payment"
  5. Payment → Order Service: "Create order"
  6. Order Service → Notification: "Send confirmation"

API Authentication

  1. Client → API Gateway: "Request with credentials"
  2. API Gateway → Auth Service: "Validate token"
  3. Auth Service → User DB: "Lookup user"
  4. Auth Service → API Gateway: "Return claims"
  5. API Gateway → Backend: "Forward with user context"
