Conformance Rules (Guardrails)

Conformance rules are deterministic checks that validate code changes against your architectural decisions. They enforce naming conventions, technology constraints, layer boundaries, and security patterns — without any AI involved.

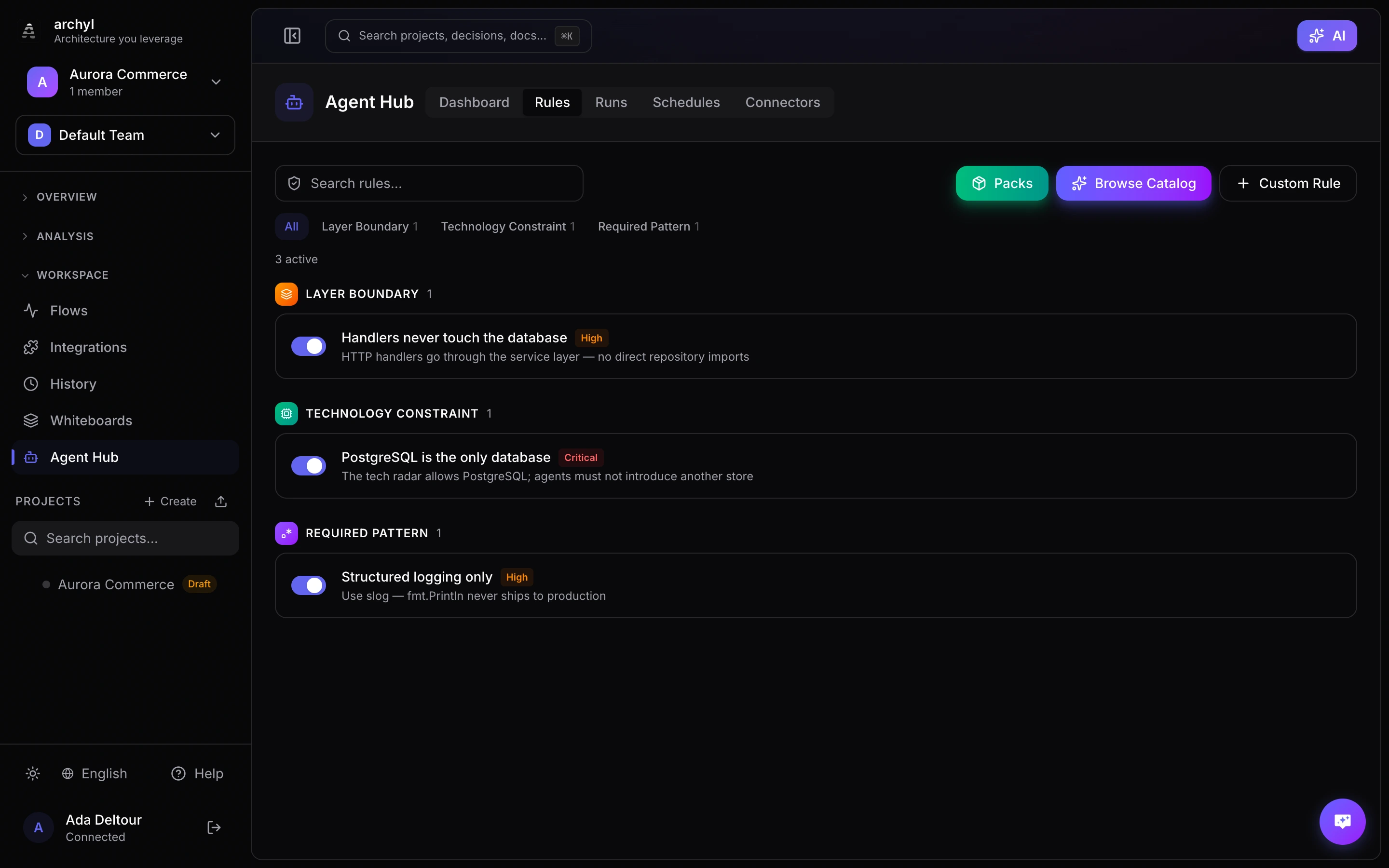

Navigate to Agent Hub in the sidebar to manage your conformance rules.

Why Conformance Rules?

When AI coding agents (Claude Code, Cursor, Copilot) generate code, they don't know your architectural decisions. Conformance rules encode those decisions as executable constraints:

• The agent can't use MongoDB if your tech radar says PostgreSQL
• The agent can't put database calls in HTTP handlers if your architecture requires a service layer
• The agent can't add fmt.Println if your team uses structured logging

Rules are evaluated deterministically — no LLM, no probabilistic output. The same code always produces the same result.

Rule Types

Archyl supports seven types of conformance rules:

Required Pattern

Check for patterns that must exist or must not exist in your code.

Configuration:

• File glob — Only check files matching a pattern (e.g., *.go, *.{ts,tsx})
• Forbidden patterns — Regex patterns that trigger a violation when found
• Required patterns — Regex patterns that trigger a violation when missing

File globs support brace expansion: *.{js,jsx,ts,tsx} matches all JavaScript and TypeScript files.

Naming Convention

Validate file, type, and function naming patterns.

Configuration:

• Patterns — List of scope (file/type/function) + regex + description

Technology Constraint

Restrict which languages and libraries are allowed in a container.

Configuration:

• Allowed languages — Comma-separated list (e.g., go, typescript)
• Forbidden imports — One import per line

Layer Boundary

Enforce Clean Architecture, Hexagonal Architecture, or DDD layer import rules.

Configuration:

• Layers — Define each layer with a name, path pattern (glob), and allowed import sources
• Click layer names to toggle import permissions

Contract Compliance

Validate that endpoint handler files contain proper API contract documentation.

Configuration:

• Contract type — HTTP (OpenAPI), gRPC, GraphQL, or AsyncAPI
• Endpoint file patterns — Globs for files containing endpoint definitions
• Strict mode — When enabled, any matching file without contract documentation triggers a violation

Dependency Rule

Enforce forbidden import paths between architectural boundaries.

Configuration:

• Scope — Container or component level
• Forbidden pairs — Source and target path patterns that must never depend on each other (e.g., **/service/** -> **/handler/**)

Event Channel Compliance

Validate that event producer/consumer patterns follow naming conventions.

Configuration:

• Producer patterns — Regex patterns identifying event production code (e.g., kafka\.Send)
• Consumer patterns — Regex patterns identifying event consumption code
• Topic regex — Pattern that valid topic names must match (e.g., ^[a-z]+\.[a-z]+\.[a-z]+$)

Rule Packs

Packs are curated collections of rules you can install with one click. Instead of adding rules one by one, install a pack and get a complete ruleset for your stack.

Click Packs in the toolbar to browse available packs.

Architecture Packs

Language Packs

Domain Packs

Rule Catalog

Archyl ships with a catalog of 170+ pre-built rules across 24 technologies. Browse the catalog by clicking Catalog in the Agent Hub.

Technologies Covered

Go, TypeScript, JavaScript, Python, Java, Kotlin, Rust, C#, C/C++, Ruby, PHP, Swift, React, Vue, Angular, Next.js, Docker, Kubernetes, Terraform, SQL, Shell, YAML, GitHub Actions

Categories

Click any rule in the catalog to add it — the configuration form pre-fills automatically.

Severity Levels

Each rule has a severity that determines its impact:

A conformance check fails if any critical or high violations are found. Medium and low violations are reported but don't fail the check.

Conformance Dashboard

The Dashboard tab in the Agent Hub provides a real-time overview of all conformance checks across your projects.

What It Shows

• Stats cards — Total checks, pass rate (color-coded), passed count, failed count
• Pass/fail ratio — Visual bar showing the proportion at a glance
• Latest check banner — Status of the most recent check with a link to the full report
• Recent checks list — All checks with status, trigger type, project name, file count, violation count, and time ago

Filtering

Use the project dropdown at the top to filter checks by project, or select "All projects" to see everything.

Check Reports

Click any check to drill into the full report:

• Severity breakdown bar — Proportional visualization of critical/high/medium/low violations
• Violations grouped by file — Collapsible sections with severity, title, description, and suggestion for each violation
• Check metadata — Trigger type, commit SHA, start time, duration

Each check report has its own shareable URL (e.g., /agent/dashboard/:checkId).

Deleting Checks

Use multi-select to delete checks in bulk:

1. Click checkboxes next to individual checks, or use "Select all"
2. Click the red Delete button that appears
3. Checks and their violations are permanently removed

CI/CD Integration

Conformance rules can run automatically on every pull request. See GitHub Actions Integration for setup instructions.

How It Works

1. A PR is opened or updated on GitHub
2. The Archyl GitHub Action fetches changed files
3. Files are sent to the Archyl API for evaluation
4. Results appear as a PR comment and commit status check
5. The workflow fails if critical or high violations are found

PR Comment

When violations are found, Archyl posts a detailed comment on the PR:

• Summary table with violation counts by severity
• Per-file violations with descriptions and suggestions
• The comment is updated (not duplicated) on subsequent pushes

Managing Rules

Creating Rules

1. Click Packs to install a curated ruleset for your stack, or
2. Click Catalog to browse and add from the 170+ pre-built rules, or
3. Click Custom to create a new rule manually

Enabling/Disabling Rules

Toggle the switch next to any rule to enable or disable it. Disabled rules are not evaluated.

Editing Rules

Click the edit icon (pencil) on any rule to modify its name, description, severity, or configuration.

Deleting Rules

Click the delete icon (trash), then confirm. This cannot be undone.

Filtering Rules

• Search — Filter by rule name or description
• Type filter — Click type pills to show only rules of a specific type

MCP Integration

Conformance rules are accessible to AI agents via the MCP server:

Available MCP Tools

Running Checks from an Agent

The run_conformance_check tool lets AI agents validate code before committing. The agent sends the files it's working on:

{
  "projectId": "your-project-uuid",
  "changedFiles": [
    { "path": "internal/handler/user.go", "status": "modified" }
  ],
  "fileContents": {
    "internal/handler/user.go": "package handler\nimport..."
  }
}

The response includes:

• passed — Whether the check passed (no critical/high violations)
• violations — List of violations with severity, file path, title, and suggestion
• rulesEvaluated — Which rules were evaluated
• filesAnalyzed — How many files were analyzed
• checkId — The check ID (visible in the dashboard)

The agent can use this feedback to fix violations before the code is committed.

Agent Context

The get_agent_context MCP tool returns all active conformance rules as part of the architectural briefing. AI agents that call this tool before starting work will know which guardrails to respect.

REST API

# Rules
GET    /api/v1/conformance/rules              # List rules
POST   /api/v1/conformance/rules              # Create rule
POST   /api/v1/conformance/rules/bulk         # Create multiple rules (used by packs)
GET    /api/v1/conformance/rules/:id          # Get rule
PUT    /api/v1/conformance/rules/:id          # Update rule
DELETE /api/v1/conformance/rules/:id          # Delete rule
POST   /api/v1/conformance/rules/:id/toggle   # Enable/disable

# Checks
POST   /api/v1/projects/:id/conformance/check # Trigger check with changed files
GET    /api/v1/conformance/checks             # List all checks (org-wide, ?projectId= filter)
GET    /api/v1/conformance/checks/:id/report  # Get check report with violations
POST   /api/v1/conformance/checks/delete      # Bulk delete checks { ids: [...] }

# Stats
GET    /api/v1/conformance/stats              # Org-wide statistics
GET    /api/v1/projects/:id/conformance/stats  # Project statistics

All endpoints require authentication (JWT or API key with write scope for mutations).
